Calibration Center

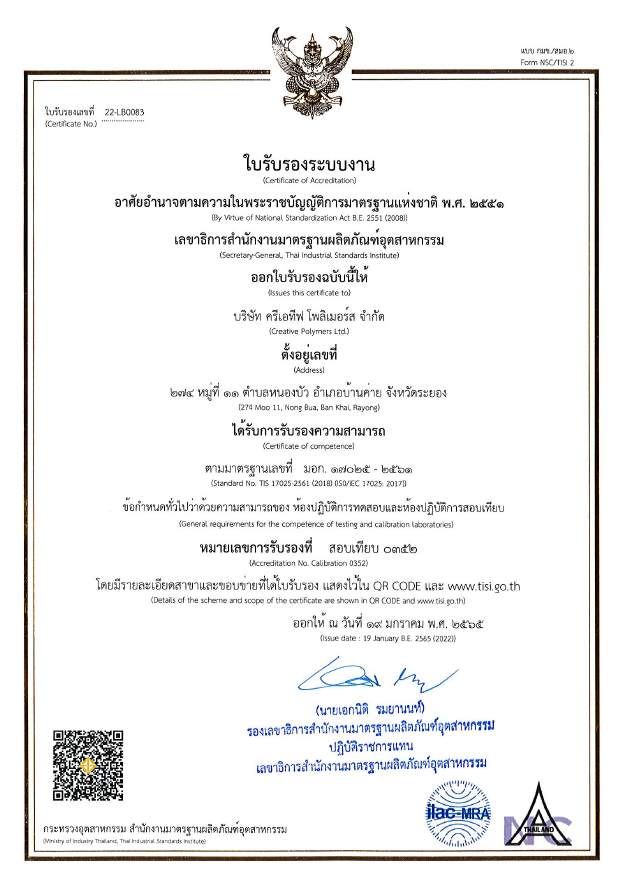

To meet research standards, all equipment must be annually certified by qualified bodies. Innovation Group’s Engineering Center is ISO/IEC 17025 certified and provides on-site calibration and maintenance services for customers’ testing and measuring instruments.
Measuring Consultation
It is necessary for research center that research equipment has to be certified yearly by qualified certifies. Innovation Group’s engineering centers has been certified by ISO/IEC 17025.
Calibration & Repair

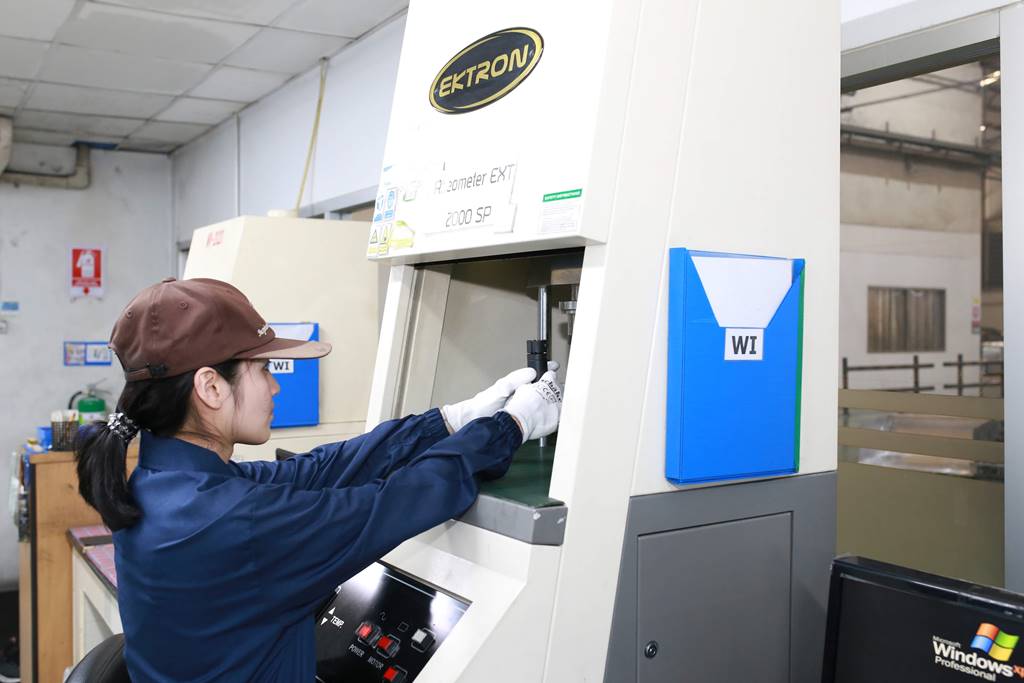

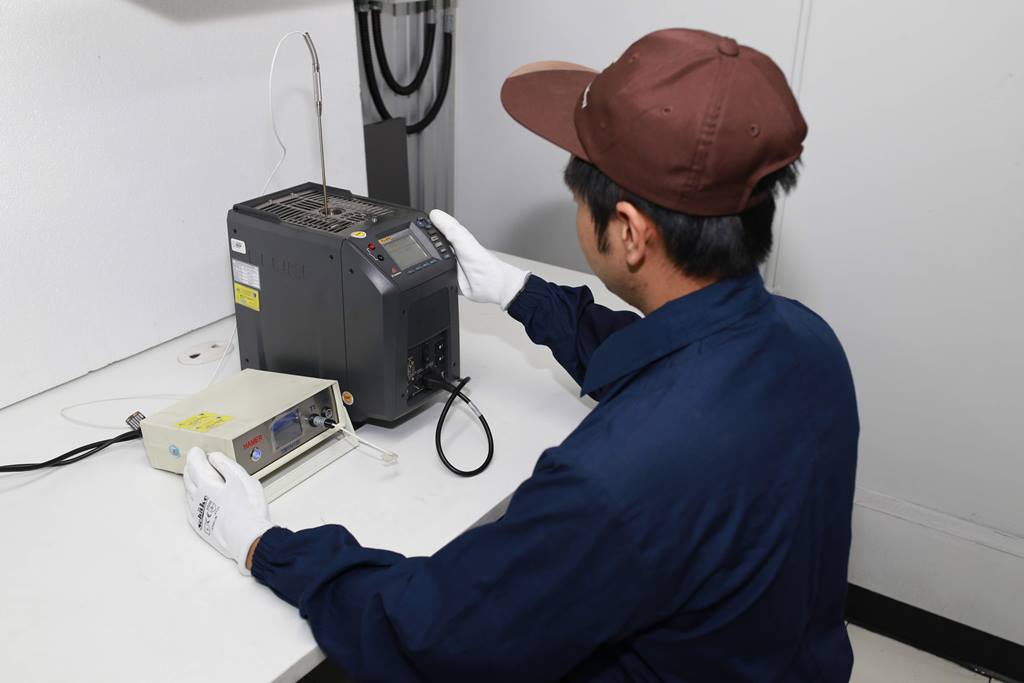

The engineering center provides calibration and maintenance service for the customer’s testing and measuring equipment at the customer’s site.

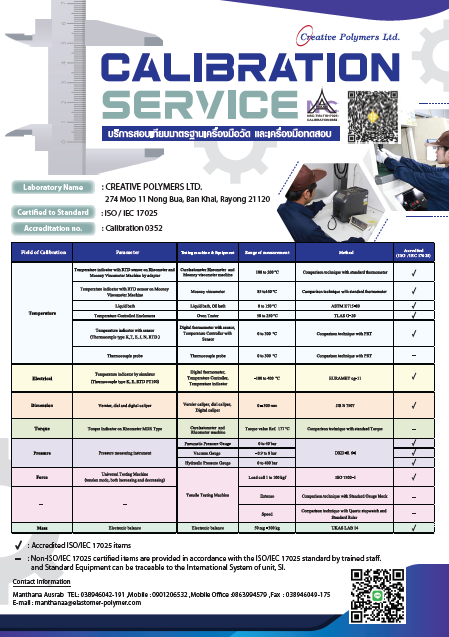

| No. | Instrument Name | Testing machine & Equipment | Method | Range of measurement | Accredited (ISO/IEC 17025) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Temperature indicator with RTD sensor on Rheometer and Mooney Viscometer Machine by adapter | Curelastometer , Rheometer ,Mooney viscometer machine | Comparison technique with standard thermometer | 100 - 200 ºc | ✓ | ||||
| 2 | Temperature indicator with RTD sensor on Mooney Viscometer Machine | Mooney viscometer | Comparison technique with standard thermometer | 85 -160 ºc | ✓ | ||||
| 3 | Liquid bath | Liquid bath | ASTM E715-80 | 0 - 150 ºc | ✓ | ||||
| 4 | Temperature Controlled Enclosures | Oven Tester | TLAS G-20 | 50 - 250 ºc | ✓ | ||||
| 5 | Temperature indicator with sensor (Thermocoupletype K,T,E,J,N,RTD ) | Digital thermometer with sensor ,Temperature Controller with Sensor | Comparison technique with PRT | 0 - 300 ºc | ✓ | ||||
| 6 | Thermocouple probe | Thermocouple probe | Comparison technique with PRT | 0 - 300 ºc | - | ||||
✓ :Accredited ISO/IEC 17025 items
– :Non-ISO/IEC 17025 certified items are provided in accordance with the ISO/IEC 17025 standard by trained staff. and Standard Equipment can be traceable to the International System of unit, SI.
| No. | Instrument Name | Testing machine & Equipment | Method | Range of measurement | Accredited(ISO/IEC 17025) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Temperature indicator by simulator (Thermocouple type K,E, RTD PT100) | Digital thermometer ,Temperature Controller ,Temperature indicator | EURAMET cg-11 | -100 to 400 ºc | ✓ | ||||
✓ :Accredited ISO/IEC 17025 items
– :Non-ISO/IEC 17025 certified items are provided in accordance with the ISO/IEC 17025 standard by trained staff. and Standard Equipment can be traceable to the International System of unit, SI.
| No. | Instrument Name | Testing machine & Equipment |
Method | Range of measurement | Accredited (ISO/IEC 17025) |
||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Vernier, dial and digital caliper | Vernier caliper | JIS B 7507 | 0 – 300 mm | ✓ | ||||
| dial caliper | |||||||||
| Digital caliper | |||||||||
✓ :Accredited ISO/IEC 17025 items
– :Non-ISO/IEC 17025 certified items are provided in accordance with the ISO/IEC 17025 standard by trained staff. and Standard Equipment can be traceable to the International System of unit, SI.
| No. | Instrument Name | Testing machine & Equipment |
Method | Range of measurement | Accredited (ISO/IEC 17025) |
||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Torque Indicator on Rheometer MDR Type | Curelastometer ,Rheometer machine | Comparison technique with standard Torque | Torque value Ref. 177 ºc | - | ||||
✓ :Accredited ISO/IEC 17025 items
– :Non-ISO/IEC 17025 certified items are provided in accordance with the ISO/IEC 17025 standard by trained staff. and Standard Equipment can be traceable to the International System of unit, SI.
| No. | Instrument Name | Testing machine & Equipment |
Method | Range of measurement | Accredited (ISO/IEC 17025) |
||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Pressure measuring instrument | Pneumatic Pressure Gauge | DKD-R 6-1 | 0 to 40 bar | ✓ | ||||
| Vacuum Gauge | -0.9 to 0 bar | ✓ | |||||||
| Hydraulic Pressure Gauge | 0 to 400 bar | ✓ | |||||||
✓ :Accredited ISO/IEC 17025 items
– :Non-ISO/IEC 17025 certified items are provided in accordance with the ISO/IEC 17025 standard by trained staff. and Standard Equipment can be traceable to the International System of unit, SI.
| No. | Instrument Name | Testing machine & Equipment | meansurement | Range of measurement | Method | Accredited (ISO/IEC 17025) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | Universal Testing machine (tension mode, both increasing and decreasing) | Tensile Testing Machine | Load cell | 1 to 100 kgf | ISO 7500-1 | ✓ | |||||
| Extenso | - | Comparison technique with Standard Gauge block | - | ||||||||
| Speed | - | Comparison technique with Quartz stopwatch and Standard Ruler | - | ||||||||
✓ :Accredited ISO/IEC 17025 items
– :Non-ISO/IEC 17025 certified items are provided in accordance with the ISO/IEC 17025 standard by trained staff. and Standard Equipment can be traceable to the International System of unit, SI.
| No. | Instrument Name | Testing machine & Equipment |
Method | Range of measurement | Accredited (ISO/IEC 17025) |
||||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Electronic balance | Electronic balance | UKAS LAB 14 | 50 mg - 300 kg | ✓ | ||||
✓ :Accredited ISO/IEC 17025 items
– :Non-ISO/IEC 17025 certified items are provided in accordance with the ISO/IEC 17025 standard by trained staff. and Standard Equipment can be traceable to the International System of unit, SI.
